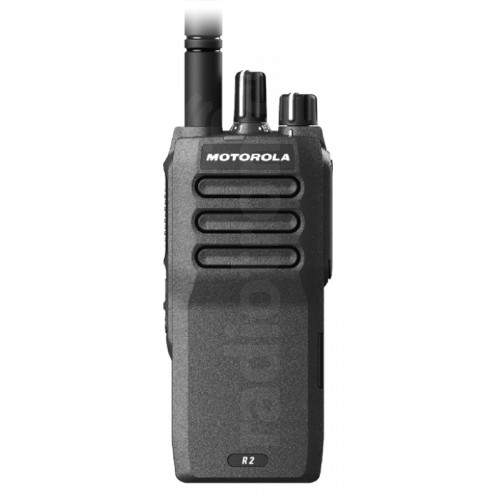

Motorola R2
Motorola R2 is a high-quality, rugged, and cost-effective two-way radio. Coined as the replacement for the Motorola CP200 (North America's most popular two-way radio) and CP200d. For all basic radio users, the R2 delivers clarity and reliability coupled with the additional benefit of digital technology (when the digital version is purchased).
The Motorola R2 is able to be used with an earpiece, headset or remote speaker microphone. The Motorola R2 has the M1 2-pin accessory connector meaning that all audio accessories are very cost-effective.
Due to R2 being both analog and digital compatible (when you buy the digital model) it is great for system migration. Should you have existing analog radios and want to move over to digital then the Motorola R2 can be programmed to work with both your old and new radios. As standard, we program 8 digital and 8 analog channels. Once you have completely replaced all of the analog radios, the existing R2 radios can be reprogrammed to have a full set of 16 digital channels.
Standing at 5" in height, 2.4" in width, 1.75" in depth (with the standard battery), and weighing at just 8.5oz the R2 is a full-size commercial two-way radio yet fits comfortably in the user's hand.
The Motorola R2 is supplied with a spring alligator-type belt clip or used with an optional extra carry case (see Motorola R2 accessories). These two carrying options allow the radio to be carried without obstruction yet still be within reach should it be needed urgently.
We also recommend looking at our selection of Motorola R2 accessories for optional extra earpieces and microphones which make the R2 more ergonomical to be used with the R2 radio itself kept on the belt.
The R2 has programmable buttons to allow for frequently used features to be accessible instantly. By default, we usually program the button below the PTT as the channel monitor and the bottom button as the high/low power button. However, by selecting "customized programming", we can program them, however, the user prefers. A common use for one of these buttons is an emergency function that will alert all other radios that a user may be in distress. Another feature is high and low power; where the battery life can be conserved when radios are used in close proximity. Finally, we support the scan feature.
A channel of the radio is capable of being set as a scanning channel, this will quickly and constantly run through the programmed channels looking for an incoming transmission to ensure that no messages are missed. Busy channel lockout is also a highly endorsed feature that will block anybody trying to transmit onto a channel whilst someone is already talking, thus ensuring that transmissions aren't crossed and slowing down the overall efficiency of the workforce. Although the lockout feature stops people from interjecting in transmissions, should the PTT button be accidentally pressed then there is also a time-out-timer that will end transmissions after a pre-set period of time in order to ensure channels aren't locked due to accidental transmissions.
Motorola R2 Quick Features
- VHF or UHF (Select when ordering)
- 16 Channels
- Large, textured push-to-talk button for ease of use
- IP54 Ingres Resistance
- Tricolour LED
Customised Programming Optional Features
Every feature mentioned below requires more advanced programming and will only be programmed if you select "customised programming".
- 2 Programmable Buttons
- Digital Emergency
- Group Call
- Private Call
- PTT ID
- Channel Scan
- Basic Privacy
- VOX Capability
- Lone Worker
- Voice Announcement
- Rental Timer
Note: If you select "standard programming", none of these optional features will be programmed. Please select "customized programming" so we can discuss your complete requirement.
Motorola R2 Features Explained
PC Programmable: The Motorola R2 is fully customizable via a Windows PC (Windows 7 or above). By using a Motorola PMKN4128A programming cable (sold separately) and the programming software*, almost every aspect of the radio can be programmed or customized.
* Software is available as a download from Motorola Solutions direct by calling 1-800-927-2744).
Analog or Digital Operation: As long as the digital version of the R2 is purchased, digital can be programmed into one channel and analog into another channel.
Blocks Unwanted Radio Interference: On analog channels CTCSS/DCS is supported and on digital channels group code and color code to block out unwanted traffic.
Two Channels In One Frequency: Utilizing TDMA technology, which is part of the DMR digital standard, the R2 is capable of delivering two channels using just one frequency. How this works is the two channels share the frequency using time division, meaning that both channels can use the frequency simultaneously without any collisions or interference.
Priority Interrupt: In an emergency, someone may already be using the radio. With the Motorola R2, this doesn't matter. An ongoing conversation can be interrupted in both back-to-back and repeater mode.
Lone Worker: Do any of your team members work alone? The R2 has the Lone Worker function built right in. This can be set to activate once every 30 minutes (or whenever you like) to sound an alarm on the team member's radio. If they don't cancel it, their radio will alert a supervisor that they're not responding which will enable the supervisor to investigate further resulting in, in some cases, saved lives.
Tough & Rugged: Motorola R2 is built to conform to MIL-STD C/D/E/F/G military standards. This is a series of thirty-eight rigorous tests for ruggedness. You can rest assured that no matter what the environment, R2 will stand the test of time.
Waterproof & Dust-Resistant: Motorola R2 meets the specification for IP54 for dust & water protection. The R2 is more than capable of withstanding harsh operating conditions.
Crystal Clear & Loud Audio: A radio's most important quality is audio clarity – being able to hear, loud and crystal-clear, what your teammate is saying. And the Motorola R2 two-way radio delivers just that. There is built-in speaker that provides very loud and clear audio output meaning this radio is one of the loudest radio on the market, without any distortion. R2 also features DSP technology that accurately replicates natural human speech, even with high levels of ambient noise, meaning it can block out a great deal of unwanted noise.
Voice Announcement: Motorola R2 has voice-announcement. That means every time you change the channel or activate/deactivate a feature using a programmable button the R2 will announce what changed. For example, if you change to channel 2, the radio will say "channel two". Or if you have a button programmed to low/high power, when pushing the button the radio will say "low power". This is very useful at night or in dark working environments. Furthermore, when an accessory (such as an earpiece or microphone) is connected, the voice announcement will be heard via the accessory instead.
Wide 70MHz Frequency Range: The Motorola R2 operates from 400-480 MHz. That's a lot of possible frequencies meaning that your R2 is futureproof. As you build a fleet of radios, or change from a basic FCC license to a more advanced FCC license, you will not have to change to any other model two-way radio.
Programming Information
By default, the R2 is delivered from Radiotronics pre-programmed on business exclusive channels. When this radio is delivered, it is programmed as shown in this table. These radios are ready for use together right out the box! If you need to use them with other radios, see the information below.
| Channel # | Frequency | Tone | Power | Comments |
|---|---|---|---|---|
| 1 | 464.5 MHz | CTCSS 67 | High (Switchable) | Ch. 1 on TK-3402U16P |
| 2 | 464.55 MHz | CTCSS 67 | High (Switchable) | Ch. 1 on PKT-23, TK-3230/DX, TK-3400U*P, Ch. 6 on TK-3402U*P |
| 3 | 467.7625 MHz | CTCSS 67 | Low | Channel 10 on TK-3230/DX, TK-3400U16P |
| 4 | 467.8125 MHz | CTCSS 67 | Low | Channel 11 on TK-3230/DX, TK-3400U16P |
| 5 | 467.85 MHz | CTCSS 67 | Low | Channel 12 on TK-3230/DX, TK-3400U16P |
| 6 | 467.875 MHz | CTCSS 67 | Low | Channel 13 on TK-3230/DX, TK-3400U16P |
| 7 | 467.9 MHz | CTCSS 67 | Low | Channel 14 on TK-3230/DX, TK-3400U16P |
| 8 | 467.925 MHz | CTCSS 67 | Low | Channel 2 on PKT-23, TK-3230/DX, TK-3400U4P, TK-3400U16P |
| 9 | 464.5 MHz | Color Code 1 | High (Switchable) | Not compatible with analog business radios. |
| 10 | 464.55 MHz | Color Code 1 | High (Switchable) | Not compatible with analog business radios. |
| 11 | 467.7625 MHz | Color Code 1 | Low | Not compatible with analog business radios. |
| 12 | 467.8125 MHz | Color Code 1 | Low | Not compatible with analog business radios. |
| 13 | 467.85 MHz | Color Code 1 | Low | Not compatible with analog business radios. |
| 14 | 467.875 MHz | Color Code 1 | Low | Not compatible with analog business radios. |
| 15 | 467.9 MHz | Color Code 1 | Low | Not compatible with analog business radios. |
| 16 | 467.925 MHz | Color Code 1 | Low | Not compatible with analog business radios. |
Motorola R2 Controls
One of the most popular questions is what are all the controls for?
| # | Description |
|---|---|
| 1 | Antenna |
| 2 | Push-To-Talk (PTT) |
| 3 | Speaker |
| 4 | Side Button 1 |
| 5 | Side Button 2 |
| 6 | USB Programming Port with Dust Cover |
| 7 | Internal Microphone |
| 8 | 2-Pin Motorola Style Accessory Port |
| 9 | LED Indicator |
| 10 | On/Off & Volume Knob |
| 11 | Channel Selector Knob |
Analog Vs. Digital
The Motorola R2 is available in two different flavours – Analog or Digital.
TLDR: The digital version of the Motorola R2 is, put simply, the same radio as an analog R2 with with the digital microchip activation licence key pre-installed, and hence the digital microchip switched on.
So what's the difference?
The Motorola R2 analog-only version is the same as the digital version - it even has the digital microchip on the main board - but the digital microchip was never activated in the factory. To activate the digital microchip, you need to purchase a digital microchip activation licence key from a Motorola dealer, for example, Radiotronics (you can buy it here on this website).
Most popular Q/A: Can the digital version still work in analog mode? Yes. The digital version of the R2 can be programmed to work in either analog or digital. It's definable per channel. The DP1400 cannot do mixed-mode on one channel.
Motorola R2 Audio Accessories
E.g. Earpieces, Headsets, Microphones...
The Motorola R2 is able to be used with an earpiece, headset or remote speaker microphone. The Motorola R2 has the M1 2-pin accessory connector meaning that all audio accessories are very cost-effective.
Radiotronics offers both genuine Motorola and aftermarket audio accessories giving a wide range of choice. Please see our dedicated Motorola R2 accessories category.
Motorola R2 Charger Options
The Motorola R2 includes a single charger & mains power supply. That means that no matter what, you'll get a charger for your R2 radio.
Single chargers are ideal for when the user needs all the radios almost permanently in different places; for example school classrooms. The user would place the charger in a store room for example and charge the radio every evening for use the next day.
However, single chargers can also promote bad charging practice where the R2 can get almost permanently left in it's single charger. That's not good for battery health and will damage the battery.
By a long stretch the very best solution for users with radio fleets above 4 radios is to use the 6-way charger. This enables good two-way radio charging practice where radios can be stored in a specific location and booked out and back in to keep track of them. The Genuine Motorola R2 Six Gang Charger is an integrated all-in-one six way charging solution (sold separately).
Replaces Older Motorola CP200 and CP200d
The Motorola R2 is the direct replacement for the, now discontinued, Motorola CP200. Whilst the Motorola R2 does not shar the same batteries or antennas, R2 does share the charger and has the exact same accessory connector for earpieces & remote speaker microphones.
The only difference is that the R2 is available as a digital version. See the options when ordering.
Motorola R2 For Playgrounds
Motorola R2 For Schools
Motorola R2 For Manufacturing
Motorola R2 For Engineering
Motorola Warranty Options
Motorola portable and mobile two-way radios ship with standard 2‐year parts and labor warranty to safeguard against manufacturing defects. Wear and tear as well as user damage is not covered. As an optional extra, when ordering, additional years' warranties can be purchased. It should be noted that extended warranty options can delay an order as the radios have to be ordered from Motorola Solutions with the warranty.
| Standard Warranty | 3-Year Warranty | 5-Year Warranty | |
|---|---|---|---|
| Period of Cover | Min. 12-Months (2-Years from Manufacture) |
3-Years (from Manufacture/Shipping) |
5-Years (from Manufacture/Shipping) |
| Manufacturer Defects Only | YES | ||
| Covers Normal Wear & Tear | NO | ||
| Covers Accidental Damage | NO | ||
| Turnaround Time | 10-15 Working Days | ||
| Non-Technical Support 10am - 4pm, Mon-Fri |
YES | ||
| Software Support | 2 Years | 3 Years | 5 Years |
| Shipping Included | Return to Client Only | ||
Notes: Turnaround time does not include transit time. Client pays inbound shipping. Shipping "Return to Client Only" means repaired goods will be shipped back to client.
Product Options & Price Breakdown
Motorola R2 is a high-quality two-way radio with a traditional Motorola-style 2-pin accessory connector and replaces the CP200 and CP200D. Supplied with battery, belt clip, antenna and single charger. Available in either UHF or VHF; and a choice of analogue only (upgrade to digital available) or digital from the start.
Note: When logged in the information shown here is unique to you. Join or Login!
| Order Code | Brand | Model | Description | Qty | Price |
|---|---|---|---|---|---|
| Selection 2: Programming | |||||
| PROG-NONE | Radiotronics | PROG-NONE | No Programming Required | 1 | $0.00 |
| PROG-MATCH | Radiotronics | PROG-MATCH | Make Work With My Old Radios | 1 | $0.00 |
| PROG-STD | Radiotronics | PROG-STD | Make Work Together | 1 | $0.00 |
