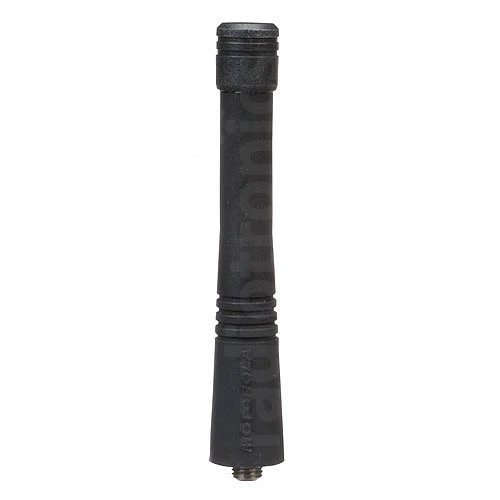

Motorola HAD9742 (also known as HAD9742A and HAD9742B) is a genuine Motorola VHF antenna for use with radios operating on frequencies between 146MHz to 162 MHz.
Compatible Radios
- CP200
- CP200d
- CP200 XLS
- PR400
- HT750
- HT1250
- HT1550
- PR860
- EX500
- EX600
Analogue Antenna Options
The following antennas are for use with almost all analog Motorola radios.
Compatible Radios
- CP100d
- CP200, CP200.XLS
- CP200d, CP300d
- CP185
- DP1400
- CP040, CP150, CP160, CP180
- P140, P145, P160, P165, P180, P185
- CT450, CT450-LS, EP350
- EX500, EX560-XLS, EX600
- GP344, GP366, GP388
- HT570, HT1250, HT1250-LS, HT1250-LS+, HT1550-XLS
- MTX8250, MTX8250-LS, MTX850, MTX850-LS, MTX9250, MTX950
- GP140, GP340, GP360, GP380, GP640, GP680
- PRO5150, PRO5150 Elite, PRO7150, PRO7150 Elite
| Part Code | Freq. Band | Frequency Range | Shape | Length | Notes |
|---|---|---|---|---|---|
| Long Antennas | |||||
| HAD9338 | VHF | 136-162 MHz | Helical | 15.5cm (6.1") | - |
| NAD6502 | 146-174 MHz | 15.5cm (6.1") | - | ||
| PMAD4014 | 136-155 MHz | Conal | 14cm (5.5") | - | |
| PMAD4023 | 150-161 MHz | 14cm (5.5") | - | ||
| PMAD4015 | 155-174 MHz | 14cm (5.5") | - | ||
| UHF | 403-520 MHz | Helical | 17cm (6.5") | Replaced by PMAE4016 | |
| PMAE4016 | 403-520 MHz | 17cm (6.5") | - | ||
| Short Antennas | |||||
| HAD9742 | VHF | 146-162 MHz | Helical | 9cm (3.5") | - |
| HAD9743 | 162-174 MHz | 9cm (3.5") | - | ||
| PMAD4012 | 136-155 MHz | Conal | 9cm (3.5") | - | |
| PMAD4025 | 150-161 MHz | 9cm (3.5") | - | ||
| PMAD4013 | 155-174 MHz | 9cm (3.5") | - | ||
| UHF | 438-470 MHz | Helical | 8cm (3.1") | Replaced by PMAE4003 | |
| PMAE4002 | 403-433 MHz | Conal | 9cm (3.5") | - | |
| PMAE4003 | 430-470 MHz | 9cm (3.5") | - | ||
| PMAE4006 | 465-495 MHz | 9cm (3.5") | - | ||
Included In The Box
The following items are included as standard.
- 1x Motorola HAD9742A Stubby Antenna
Note: Anything not mentioned here is not included.
