Motorola CP200d Preconfigured Six Pack & Build Your Own Bundle Package

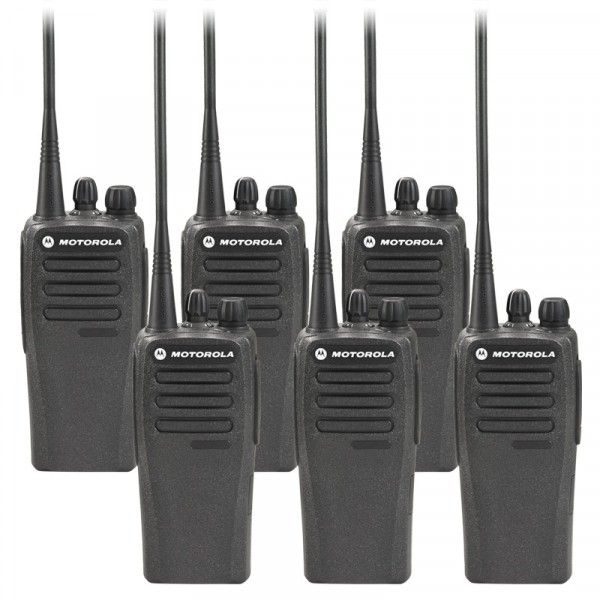

This innovative Motorola CP200d six-pack bundle contains six CP200d two-way radios, six standard batteries, six antennas, six belt clips, a choice of 6-gang charger or single chargers, a choice of accessory (microphone or earpiece) and a programming option.
- 6x Motorola CP200d
- 6x Belt Clips
- 6x Batteries
- 6x Antennas
- 6x Single Chargers
- Optional Gang Charger
- Choice of Accessory
- Programming Options

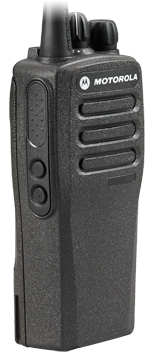

Motorola CP200d
Motorola CP200d is a high quality, rugged, and cost-effective two-way radio. Coined as the replacement for the Motorola CP200 (North America's most popular two-way radio) for all basic radio users, the CP200d delivers clarity and reliability coupled with the additional benefit of digital technology (when the digital version is purchased).
The Motorola CP200d is able to be used with an earpiece, headset or remote speaker microphone. The Motorola CP200d has the M1 2-pin accessory connector meaning that all audio accessories are very cost-effective.
Due to CP200d being both analog and digital compatible (when you buy the digital model) it is great for system migration. Should you have existing analog radios and want to move over to digital then the Motorola CP200d can be programmed to work with both your old and new radios. As standard, we program 8 digital and 8 analog channels. Once you have completely replaced all of the analog radios, the existing CP200d radios can be reprogrammed to have a full set of 16 digital channels.
Standing at 5" in height, 2.4" in width, 1.75" depth (with the standard battery), and weighing at just 8.5oz the CP200d is a full-size commercial two-way radio yet fits comfortably in the user's hand.
The Motorola CP200d is supplied with a spring alligator-type belt clip or used with an optional extra carry case (see Motorola CP200d accessories). These two carrying options allow the radio to be carried without obstruction yet still be within reach should it be needed urgently.
We also recommend looking at our selection of Motorola CP200d accessories for optional extra earpieces and microphones which make the CP200d more ergonomical to be used with the CP200d radio itself kept on the belt.
The CP200d has programmable buttons to allow for frequently used features to be accessible instantly. By default, we usually program the button below the PTT as the channel monitor and the bottom button as the high/low power button. However, by selecting "customized programming", we can program them however the user prefers. A common use for one of these buttons is an emergency function that will alert all other radios that a user may be in distress. Another feature is high and low power; where the battery life can be conserved when radios are used in close proximity. Finally, we support scan.
A channel of the radio is capable of being set as a scanning channel, this will quickly and constantly run through the programmed channels looking for an incoming transmission to ensure that no messages are missed. Busy channel lockout is also a highly endorsed feature that will block anybody trying to transmit onto a channel whilst someone is already talking, this ensuring that transmissions aren't crossed and slowing down the overall efficiency of the workforce. Although the lockout feature stops people from interjecting in transmissions, should the PTT button be accidentally pressed then there is also a time-out-timer that will end transmissions after a pre-set period of time in order to ensure channels aren't locked due to accidental transmissions.
Motorola CP200d Quick Features
- VHF or UHF (Select when ordering)
- 16 Channels
- Large, textured push-to-talk button for ease of use
- IP54 Ingres Resistance
- Tricolour LED
Customised Programming Optional Features
Every feature mentioned below requires more advanced programming and will only be programmed if you select "customised programming".
- 2 Programmable Buttons
- Digital Emergency
- Group Call
- Private Call
- PTT ID
- Channel Scan
- Basic Privacy
- VOX Capability
- Lone Worker
- Voice Announcement
- Rental Timer
Note: If you select "standard programming", none of these optional features features will be programmed. Please select "customized programming" so we can discuss your complete requirement.
Motorola CP200d Features Explained
PC Programmable: The Motorola CP200d is fully customizable via a Windows PC (Windows 7 or above). By using a Motorola PMKN4128A programming cable (sold separately) and the programming software*, almost every aspect of the radio can be programmed or customized.
* Software is available as a download from Motorola Solutions direct by by calling 1-800-927-2744).
Analog or Digital Operation: As long as the digital version of the CP200d is purchased, digital can be programmed into one channel and analog into another channel.
Blocks Unwanted Radio Interference: On analog channels CTCSS/DCS is supported and on digital channels group code and color code to block out unwanted traffic.
Two Channels In One Frequency: Utilizing TDMA technology, which is part of the DMR digital standard, the CP200d is capable of delivering two channels using just one frequency. How this works is the two channels share the frequency using time division, meaning that both channels can use the frequency simultaneously without any collisions or interference.
Priority Interrupt: In an emergency, someone may already be using the radio. With the Motorola CP200d, this doesn't matter. An ongoing conversation can be interrupted in both back-to-back and repeater mode.
Lone Worker: Do any of your team members work alone? The CP200d has Lone Worker function built right in. This can be set to activate once every 30 minutes (or whenever you like) to sound an alarm on the team member's radio. If they don't cancel it, their radio will alert a supervisor that they're not responding which will enable the supervisor to investigate further resulting in, in some cases, saved lives.
Tough & Rugged: Motorola CP200d is built to conform to MIL-STD C/D/E/F/G military standards. This is a series of thirty eight rigorous tests a for ruggedness. You can rest assured that no matter what the environment, CP200d will stand the test of time.
Waterproof & Dust-Resistant: Motorola CP200d meets the specification for IP54 for dust & water protection. The CP200d is more than capable of withstanding harsh operating conditions.
Crystal Clear & Loud Audio: A radio's most important quality is audio clarity – being able to hear, loud and crystal-clear, what your teammate is saying. And the Motorola CP200d two-way radio delivers just that. There is built-in speaker that provides very loud and clear audio output meaning this radio is one of the loudest radio on the market, without any distortion. CP200d also features DSP technology that accurately replicates natural human speech, even with high levels of ambient noise, meaning it can block out a great deal of unwanted noise.
Voice Announcement: Motorola CP200d has voice-announcement. That means every time you change the channel or activate/deactivate a feature using a programmable button the CP200d will announce what changed. For example, if you change to channel 2, the radio will say "channel two". Or if you have a button programmed to low/high power, when pushing the button the radio will say "low power". This is very useful at night or in dark working environments. Furthermore, when an accessory (such as an earpiece or microphone) is connected, the voice announcement will be heard via the accessory instead.
Wide 70MHz Frequency Range: The Motorola CP200d operates from 400-470 MHz. That's a lot of possible frequencies meaning that your CP200d is futureproof. As you build a fleet of radios, or change from a basic FCC license to a more advanced FCC license, you will not have to change to any other model two-way radio.
Programming Information
By default, the CP200d is delivered from Radiotronics pre-programmed on business exclusive channels. When this radio is delivered, it is programmed as shown in this table. These radios are ready for use together right out the box! If you need to use them with other radios, see the information below.
| Channel # | Frequency | Tone | Power | Comments |
|---|---|---|---|---|
| 1 | 464.5 MHz | CTCSS 67 | High (Switchable) | Ch. 1 on TK-3402U16P |
| 2 | 464.55 MHz | CTCSS 67 | High (Switchable) | Ch. 1 on PKT-23, TK-3230/DX, TK-3400U*P, Ch. 6 on TK-3402U*P |
| 3 | 467.7625 MHz | CTCSS 67 | Low | Channel 10 on TK-3230/DX, TK-3400U16P |
| 4 | 467.8125 MHz | CTCSS 67 | Low | Channel 11 on TK-3230/DX, TK-3400U16P |
| 5 | 467.85 MHz | CTCSS 67 | Low | Channel 12 on TK-3230/DX, TK-3400U16P |
| 6 | 467.875 MHz | CTCSS 67 | Low | Channel 13 on TK-3230/DX, TK-3400U16P |
| 7 | 467.9 MHz | CTCSS 67 | Low | Channel 14 on TK-3230/DX, TK-3400U16P |
| 8 | 467.925 MHz | CTCSS 67 | Low | Channel 2 on PKT-23, TK-3230/DX, TK-3400U4P, TK-3400U16P |
| 9 | 464.5 MHz | Color Code 1 | High (Switchable) | Not compatible with analog business radios. |
| 10 | 464.55 MHz | Color Code 1 | High (Switchable) | Not compatible with analog business radios. |
| 11 | 467.7625 MHz | Color Code 1 | Low | Not compatible with analog business radios. |
| 12 | 467.8125 MHz | Color Code 1 | Low | Not compatible with analog business radios. |
| 13 | 467.85 MHz | Color Code 1 | Low | Not compatible with analog business radios. |
| 14 | 467.875 MHz | Color Code 1 | Low | Not compatible with analog business radios. |
| 15 | 467.9 MHz | Color Code 1 | Low | Not compatible with analog business radios. |
| 16 | 467.925 MHz | Color Code 1 | Low | Not compatible with analog business radios. |

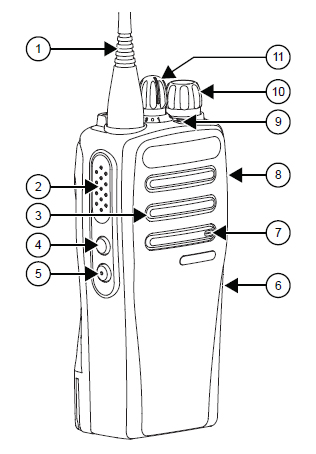

Motorola CP200d Controls
One of the most popular questions is what are all the controls for?
| # | Description |
|---|---|
| 1 | Antenna |
| 2 | Push-To-Talk (PTT) |
| 3 | Speaker |
| 4 | Side Button 1 |
| 5 | Side Button 2 |
| 6 | USB Programming Port with Dust Cover |
| 7 | Internal Microphone |
| 8 | 2-Pin Motorola Style Accessory Port |
| 9 | LED Indicator |
| 10 | On/Off & Volume Knob |
| 11 | Channel Selector Knob |
Analog Vs. Digital
The Motorola CP200d is available in two different flavours – Analog or Digital.
TLDR: The digital version of the Motorola CP200D is, put simply, the same radio as an analog CP200d with with the digital microchip activation licence key pre-installed, and hence the digital microchip switched on.
So what's the difference?
The Motorola CP200D analog-only version is the same as the digital version - it even has the digital microchip on the main board - but the digital microchip was never activated in the factory. To activate the digital microchip, you need to purchase a digital microchip activation licence key from a Motorola dealer, for example, Radiotronics (you can buy it here on this website).
Most popular Q/A: Can the digital version still work in analog mode? Yes. The digital version of the CP200d can be programmed to work in either analog or digital. It's definable per channel. The DP1400 cannot do mixed-mode on one channel.

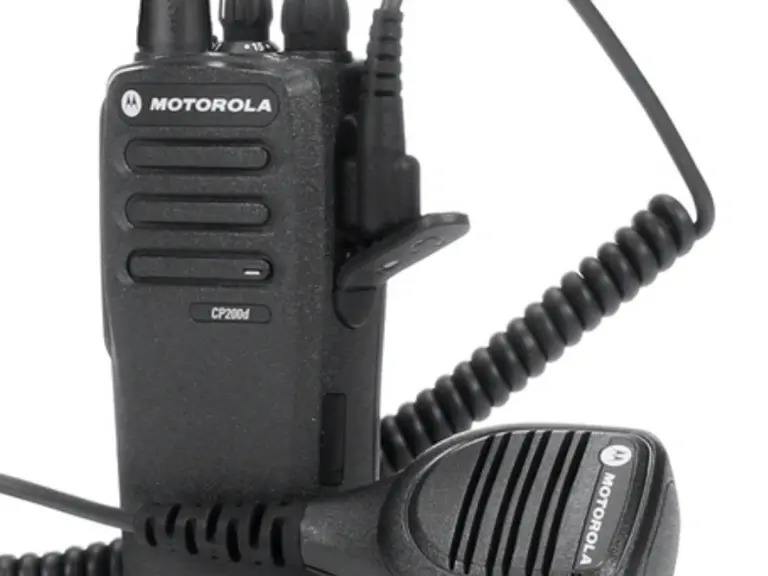

Motorola CP200d Audio Accessories
E.g. Earpieces, Headsets, Microphones...
The Motorola CP200d is able to be used with an earpiece, headset or remote speaker microphone. The Motorola CP200d has the M1 2-pin accessory connector meaning that all audio accessories are very cost-effective.
Radiotronics offers both genuine Motorola and aftermarket audio accessories giving a wide range of choice. Please see our dedicated Motorola CP200d accessories category.
Motorola CP200d Charger Options

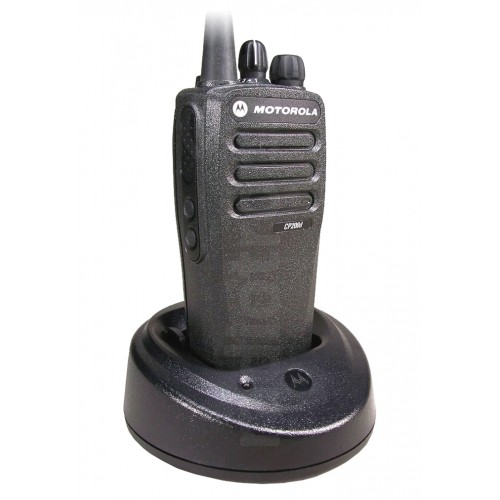

The Motorola CP200d includes a single charger & mains power supply. That means that no matter what, you'll get a charger for your CP200d radio.
Single chargers are ideal for when the user needs all the radios almost permanently in different places; for example school classrooms. The user would place the charger in a store room for example and charge the radio every evening for use the next day.
However, single chargers can also promote bad charging practice where the CP200d can get almost permanently left in it's single charger. That's not good for battery health and will damage the battery.

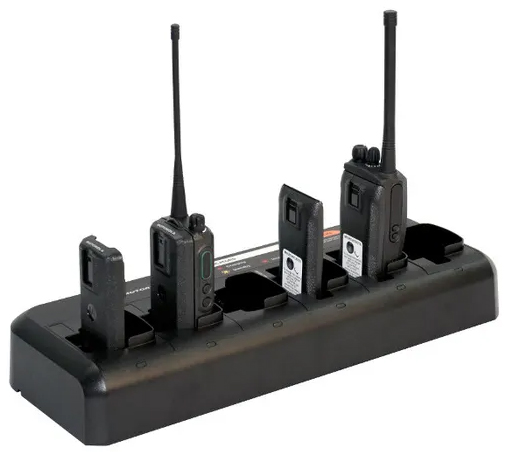

By a long stretch the very best solution for users with radio fleets above 4 radios is to use the 6-way charger. This enables good two-way radio charging practice where radios can be stored in a specific location and booked out and back in to keep track of them. The Genuine Motorola CP200d Six Gang Charger is an integrated all-in-one six way charging solution (sold separately).
Replaces Older Motorola CP200
The Motorola CP200d is the direct replacement for the, now discontinued, Motorola CP200. So much so, that the CP200D shares the batteries, chargers, antennas, top knobs and has the exact same accessory connector for earpieces & remote speaker microphones. In fact, you could keep all of your batteries and accessories and swap-out just the CP040 radio for the DP1400 radio.
The only difference is that the DP1400 is available as a digital version. See the options when ordering.
Motorola CP200d For Playgrounds
Motorola CP200d For Schools

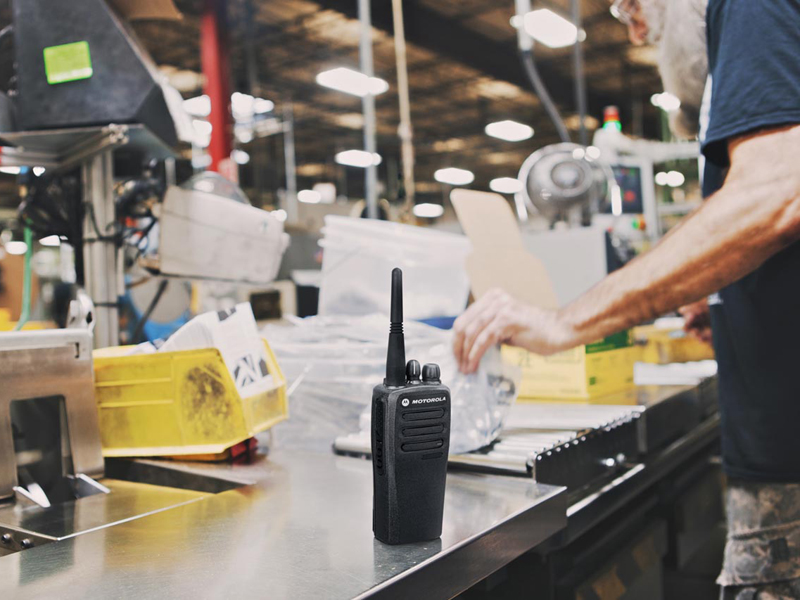

Motorola CP200d For Manufacturing

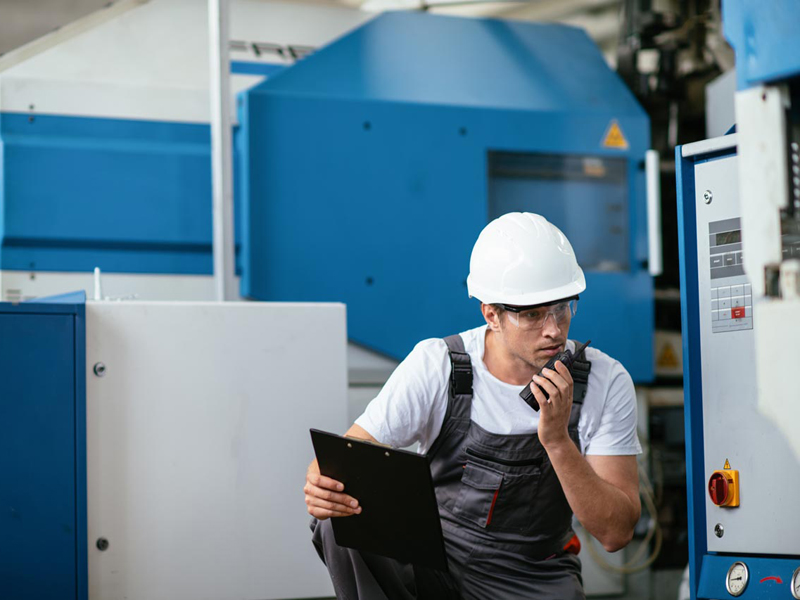

Motorola CP200d For Engineering
Motorola Warranty Options
Motorola portable and mobile two-way radios ship with standard 2‐year parts and labor warranty to safeguard against manufacturing defects. Wear and tear as well as user damage is not covered. As an optional extra, when ordering, additional years' warranties can be purchased. It should be noted that extended warranty options can delay an order as the radios have to be ordered from Motorola Solutions with the warranty.
| Standard Warranty | 3-Year Warranty | 5-Year Warranty | |
|---|---|---|---|
| Period of Cover | Min. 12-Months (2-Years from Manufacture) |
3-Years (from Manufacture/Shipping) |
5-Years (from Manufacture/Shipping) |
| Manufacturer Defects Only | YES | ||
| Covers Normal Wear & Tear | NO | ||
| Covers Accidental Damage | NO | ||
| Turnaround Time | 10-15 Working Days | ||
| Non-Technical Support 10am - 4pm, Mon-Fri |
YES | ||
| Software Support | 2 Years | 3 Years | 5 Years |
| Shipping Included | Return to Client Only | ||
Notes: Turnaround time does not include transit time. Client pays inbound shipping. Shipping "Return to Client Only" means repaired goods will be shipped back to client.
Product Options & Price Breakdown
Motorola CP200d is a high quality, rugged, and cost-effective two-way radio. Coined as the replacement for the Motorola CP200 (North America's most popular two-way radio) for all basic radio users, the CP200d delivers clarity and reliability coupled with the additional benefit of digital technology (when the digital version is purchased).
Note: When logged in the information shown here is unique to you. Join or Login!
| Order Code | Brand | Model | Description | Qty | Price |
|---|---|---|---|---|---|
| Selection 2: Battery Selection | |||||
| STDBAT0752 | Motorola | NNTN4497DR | 2250mAh Lithium Battery | 1 | $0.00 |
| QA03816 | Motorola | NNTN4851A | 1400mAh NiMH Battery | 1 | Available To Order |
| QA03815 | Motorola | NNTN4970A | 1600mAh Lithium Battery (Slimline) | 1 | Available To Order |
| Selection 3: Warranty | |||||
| QA00510 | Motorola | QA00510 | 2 Years Standard Warranty | 1 | $0.00 |
| STDESS0752 | Motorola | STDESS0752 | 3 Years Extended Warranty | 1 | Available To Order |
| H886 | Motorola | H886 | 5 Years Extended Warranty | 1 | Available To Order |
| Selection 4: Programming | |||||
| PROG-NONE | Radiotronics | PROG-NONE | No Programming Required | 1 | $0.00 |
| PROG-STD | Radiotronics | PROG-STD | Make Work Together | 1 | $0.00 |
| PROG-MATCH | Radiotronics | PROG-MATCH | Make Work With My Old Radios | 1 | $0.00 |
| PROG-CUST | Radiotronics | PROG-CUST | Customized Programming | 1 | $0.00 |
Motorola CP200d Custom Linked Products
Below is a list of Motorola CP200d spare parts to allow your Motorola CP200d to be repaired and or serviced.
| # | Order Code | Description | Price |
|---|---|---|---|
| - | 6686533Z01 | Motorola 6686533Z01 Case Opening Tool (CP200, CP200D) | $39.94 |
Note: There may be more spare parts available. If a part is not shown, please call (302) 202 6688 during office hours, or email sales@radiotronics.ca anytime.
